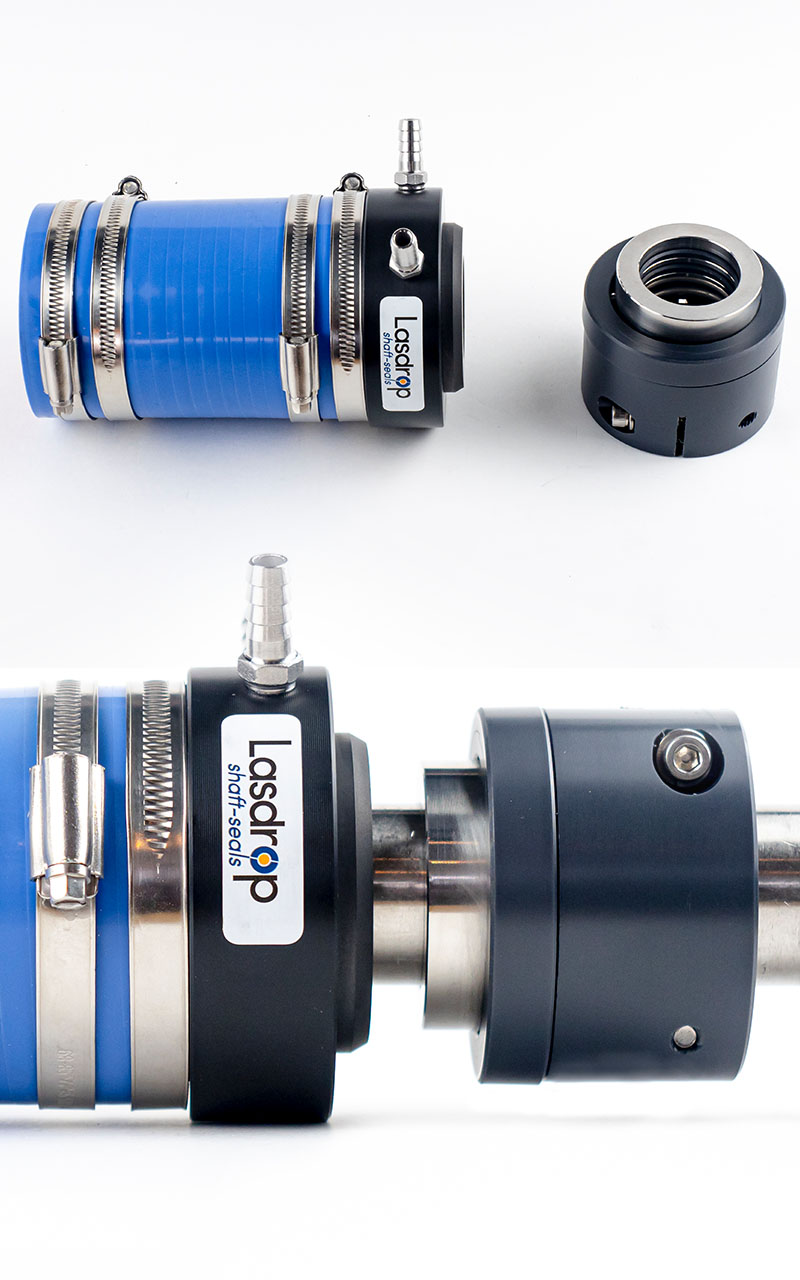

A commercial grade mechanical face seal designed for long lasting installation in some of the harshest conditions.
The Gen2 targets commercial and heavy personal marine applications.
Advanced engineering for commercial marine applications

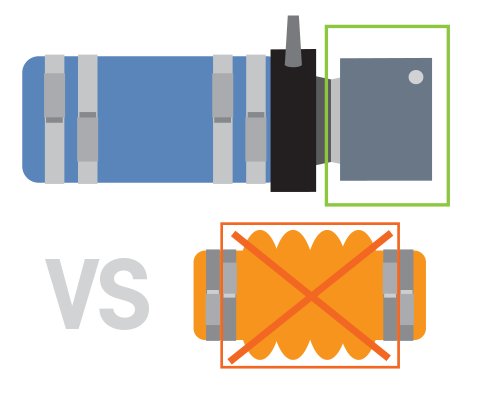

Our Gen2 creates compression through the use of our innovative pressure housing, eliminating the needs for a bellows hose. This Pressure Housing offers a much longer life span when compared to a bellows, giving you less maintenance over the life of your seal.
Our integrated water lubricated bearing will allow the seal body to follow the shaft insuring proper face seal alignment. (ALL Lasdrop bearing housings have tolerances within 0.001). The integrated bearing allows the seal body to self-align following the shaft.

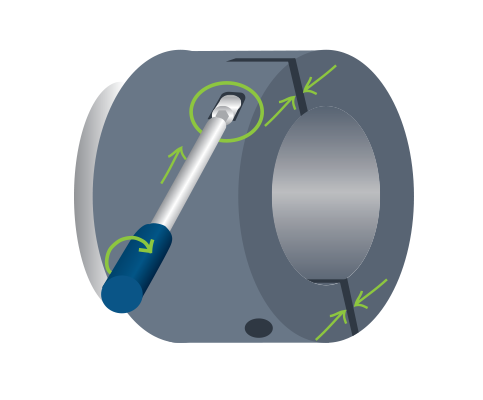

The Gen2 Pressure Housing secures to the shaft through a simple integrated clamping system. This eliminates the need for set screws - which can potentially damage the shaft & slide after their first use resulting in a less secure and stable seal.
Available in sizes from 1" - 5" (30mm - 130mm)

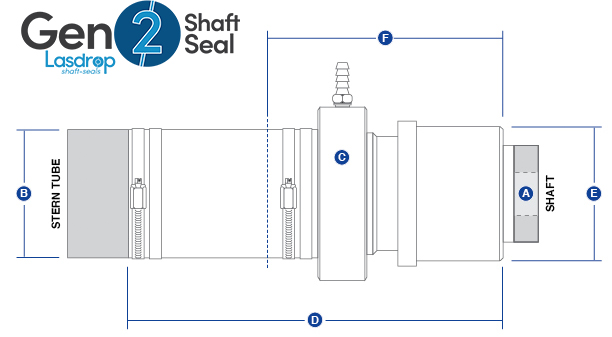

Gen2 shaft seals are sized based on your propeller shaft diameter. Our team can help you select the correct size for your vessel and provide detailed sizing charts.
Installation guides, sizing charts, and specifications
Updated: May 2024
Contact RL Marine for installation guides, sizing charts, and technical specifications
Australia's EXCLUSIVE Lasdrop distributor
Gen2 seals maintained in Brisbane inventory. No waiting for overseas shipments.
Satchel delivery anywhere in Australia. Tomorrow, not in 2-4 weeks.
Professional installation available in Brisbane and Hervey Bay. Full warranty support.
RL Marine is the exclusive authorized distributor for Lasdrop shaft seals in Australia.
All products are genuine Lasdrop USA manufactured seals with full factory warranty. View Lasdrop Gen2 manufacturer page →
